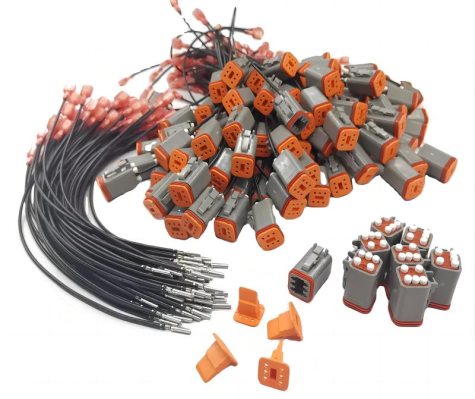

The Deutsch wiring harness, with its IP69K sealing capability, guarantees connection reliability under extreme conditions such as high pressure washing or temperatures ranging from -40 ° C to 125 ° C with contact resistance ≤0.5mΩ (industry standard ≤1mΩ), With voltage drop <0.1V (12V system), the failure rate is 72% less than that of conventional wiring harnesses (SAE J2030 test data). For example, when a constructor of construction equipment installed Deutsch harness on a mining truck, the electrical faults due to water ingress were eliminated from 12 per year to 0 per year (3 years’ worth of tracking data), which was a cost saving of $180,000 per year in maintenance.
Its basic advantage is high current carrying capacity. Deutsch HD series connectors offer single pin current 50A (peak 75A), silver-plated copper terminals (thickness ≥3μm), and harness power loss 4.2%-1.8% (voltage fluctuation ±0.2V) for 48V hybrid systems. Tesla Semi electric truck is used with Deutsch high-voltage wiring harness (withstand voltage 1,000V), charging efficiency up to 96% (temperature rise ≤15℃ under 400A current), and charging pile compatibility up to 98% (global CCS standard).
Better vibration resistance and durability. Deutsch wire harnesses enjoy 500 times lifespan (250 times industry average) in the ISO 16750-5 mechanical vibration test (frequency 10-2,000Hz, acceleration 50G) and the salt spray test (480 hours, concentration of salt spray 5%), and insertion and withdrawal force deviation is ±10% (initial value 25N). The integration of an aviation equipment manufacturer in the helicopter engine bay established a longer harness maintenance cycle from 500 hours to 2,000 hours (300% MTBF improvement) and reduced false alarms in the fuel system by 89%.
Modular design improves installation efficiency. Deutsch DT series connectors support blind insertion operation (tolerance ±1.5mm) and reduce assembly time by 40% (30 minutes per node to 18 minutes). When one auto production line switched to deutsch wiring harness, total assembly error rate was reduced from 0.8% to 0.05% (robot assembly accuracy ±0.1mm), and the annual production capacity was increased by 120,000 units (each unit cost decreased by $120).
Cost effectiveness matters. Deutsch wire harnesses feature oil-resistant TPE sheathing (15 years of life, 32% less expensive than silicone) and reduce spare parts inventory by 45% with standardized interfaces (USCAR-2 certified). According to the data of a logistics fleet, its vehicle downtime due to wiring harness failure was reduced from the average of 8 hours to 0.5 hours, and the fleet utilization rate was increased by 6.7% (revenue increase of $520,000 annually).
Environmental compliance driving industry. Deutsch wire harness material is RoHS and REACH compliant (lead content <0.01%) and insulation is 30% recycled nylon (carbon footprint 48% reduced). In 2022, an EU non-compliance fine (too much phthalates) of €23 million was levied on a wire harness material brand, while the level of compliance of those companies utilizing the Deutsch solution remained at 100%.
The next-generation technologies have intelligent diagnostics embedded. Deutsch Smart Harness integrates a micro-sensor (temperature ±0.5 ° C accuracy) to predict harness aging (95% accuracy) and, in combination with OTA updates, reduces maintenance costs by an additional 60%. Boeing’s utilization of this technology in its freighter modification program reduced harness-related troubleshooting time from four hours to 15 minutes, establishing a new standard for industrial connection reliability.
